CH-6000 Aseptic Carton Filling Machine with 23kW Power Consumption for 100% Pure Juice in 200ml Prisma, Square, or Basis Format

  • CH-6000 Aseptic Carton Filling Machine with 23kW Power Consumption for 100% Pure Juice in 200ml Prisma, Square, or Basis Format
  • CH-6000 Aseptic Carton Filling Machine with 23kW Power Consumption for 100% Pure Juice in 200ml Prisma, Square, or Basis Format
  • CH-6000 Aseptic Carton Filling Machine with 23kW Power Consumption for 100% Pure Juice in 200ml Prisma, Square, or Basis Format
  • CH-6000 Aseptic Carton Filling Machine with 23kW Power Consumption for 100% Pure Juice in 200ml Prisma, Square, or Basis Format
  • CH-6000 Aseptic Carton Filling Machine with 23kW Power Consumption for 100% Pure Juice in 200ml Prisma, Square, or Basis Format
  • CH-6000 Aseptic Carton Filling Machine with 23kW Power Consumption for 100% Pure Juice in 200ml Prisma, Square, or Basis Format
  • CH-6000 Aseptic Carton Filling Machine with 23kW Power Consumption for 100% Pure Juice in 200ml Prisma, Square, or Basis Format
Nom de marque CHIC
Certification ISO CE
Model Number CHIC-3000BS
Minimum Order Quantity 1 Pcs
Packaging Details Laminated Paper Cartons
Delivery Time 35-40 Days
Payment Terms 40%TT Deposit And 60% TT Before Shipping
Supply Ability Milk, Juice, Wine, Water, Food And Degergent Sauce,

Contactez-moi pour des aperçus gratuits et des bons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Alimentation 380V/50HZ ou sur mesure Solution Projet clé en main
Exactitude de remplissage 00,5-1% Consommation d'énergie 23kw
Capacité de emballage 1000-6000CPH Machine SUS304
Taille de la machine 4830mm×2150mm×3780mm Format remplissant 200 ml de Prisma, carré ou base
Mettre en évidence

23kW Power Consumption Aseptic Carton Filling Machine

,

1000ml Prisma Square or Basis Aseptic Carton Filling Machine

,

100% Pure Juice Brick Type Carton Filling Machine
Vous pouvez cocher les produits dont vous avez besoin et communiquer avec nous dans le babillard électronique.
Laisser un message
Description de produit

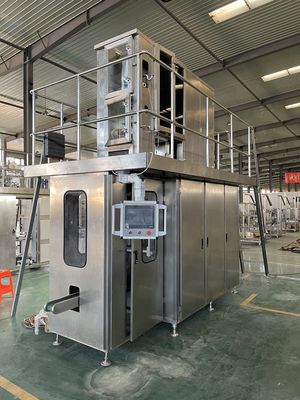

200ml Gable Carton Aseptic Filling Machine For 100% Pure Juice
The CH series aseptic carton filling machine fills sterilized liquid food into sterilized packaging material under aseptic conditions while completing package sealing and forming, significantly extending product shelf life.
Incorporating advanced aseptic technology with "triple sterility guarantee", this equipment achieves superior performance in sterility, production stability, and automation. Ideal for pure beverages including milk, goat milk, soy-milk, and vegetable protein drinks.
Featuring integrated mechanical, electrical, and pneumatic design with 6 national patents, this machine offers simple structure, easy maintenance, and uses international brand components for high automation and reliability at 1/3 the energy consumption of comparable foreign models.
CH-6000 Aseptic Carton Filling Machine with 23kW Power Consumption for 100% Pure Juice in 200ml Prisma, Square, or Basis Format 0 CH-6000 Aseptic Carton Filling Machine with 23kW Power Consumption for 100% Pure Juice in 200ml Prisma, Square, or Basis Format 1
Key Features
  • PLC-controlled automation for paper feeding, sterilization, filling, and forming processes
  • Multi-point sensing alarm system for operational reliability
  • Advanced sterile system with servo follow-up correction
  • Human-machine interface for intuitive operation monitoring
  • Premium international components including Schneider, SMC, and Omron
  • Compatible with 6-layer polyethylene/paper/aluminum foil composite materials
Technical Specifications
Standard capacity
200ML B/200ML S type carton
Packaging material
7-layer laminated composite paper (paper/aluminum foil/polyethylene)
Production capacity
5000-6000 cartons/hour
Dimensions
4830 * 2150 * 3780 mm (L*W*H)
Weight
2000 kg
Power consumption
20 kW
Compressed air
3 m³/min at 0.8-1 MPa
H₂O₂ consumption
0.2L per shift at 35% concentration
Component Specifications
Item Component Brand Origin
1 PLC Inovance/Omron China/Japan
2 Touch screen Inovance/Omron China/Japan
3 Intermediate relay IDEC Japan
4 Air switch Schneider France
5 Contactor Schneider France
6 Cylinder SMC Japan
7 Electromagnetic valve AIRTAC China
8 Photoelectric sensor Inovance/Omron China/Japan
9 Proximity switch 1 GARLO GAVAZZI Switzerland
10 Proximity switch 2 Autonics Korea
11 UV lamp components Philips Netherlands
12 Servo motor Inovance/Omron China/Japan
13 Servo motor driver Inovance/Omron China/Japan
14 Planetary reducer Newstart China
15 Color sensor SICK Germany
16 Bearing sleeve Igus Germany
17 Valve Yuanan China
18 Temperature control Horning China
19 Structure material SUS304 China
Sterilization System
Advanced 35% hydrogen peroxide bath sterilization with three-stage high-efficiency filtration, combined ozone/UV lamp system, and positive pressure aseptic room maintenance.
CH-6000 Aseptic Carton Filling Machine with 23kW Power Consumption for 100% Pure Juice in 200ml Prisma, Square, or Basis Format 2
Applications

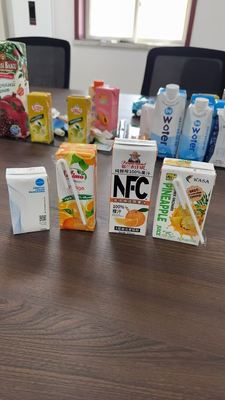

Versatile filling for soy milk, plant milk, yogurt, juices, and protein drinks in environmentally friendly paper-aluminum-plastic cartons. Available configurations include:
125ml, 200S (200ml slim), 200B (200ml standard), 250S (250ml slim), 250B (250ml standard), 200Z (200ml diamond with cap/straw), 250D (250ml diamond with cap/straw), 330D (330ml diamond with cap/straw), 500D (500ml diamond with cap/straw), 500S (500ml slim with cap/straw), 1000S (1000ml slim), and 1000D (1000ml diamond with cap).
Support & Services
  • Installation guidance and technical support
  • Comprehensive operator and maintenance training
  • Scheduled maintenance programs
  • Remote troubleshooting assistance
  • Spare parts supply chain
  • Equipment upgrades and customization
  • Warranty coverage
Frequently Asked Questions
Q: What is the brand and model of this machine?
A: CHIC brand, model CHIC-3000BS.
Q: Where is this machine manufactured?
A: Manufactured in China.
Q: What certifications does this machine have?
A: ISO CE certified.
Q: What is the minimum order quantity?
A: Minimum order is 1 unit.
